FOUR 4-AI12 SLOT
4-AI12SLOT
• BIG ported enclosure for 12″ subwoofer
• Large port has rounded edges
• Upholstery is made of black carpet
• Net volume: 80 liters
• Tuning frequency: 38 Hz
• Diameter of speaker hole: 294 mm.
Read More
¨
Any questions? Contact usexport@audioimport.fi
Description
Specifications

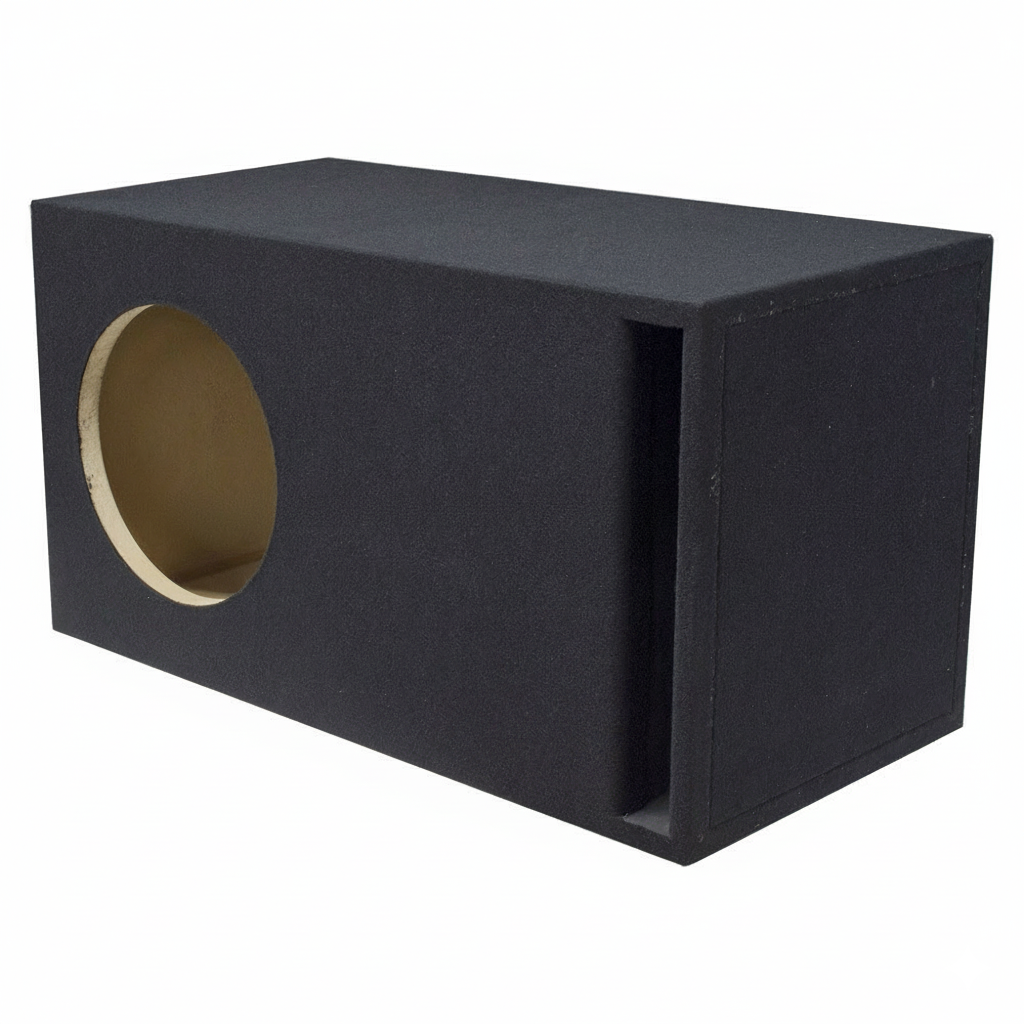

FOUR 4-AI12 SLOT is a LARGE ported enclosure for 12″ subwoofer. Volume is big enough for any driver of this size. Large port has rounded edges and very good air flow. Enclosure is made of MDF board and upholstery is made of black carpet. Front panel is maed of 25 mm plywood.

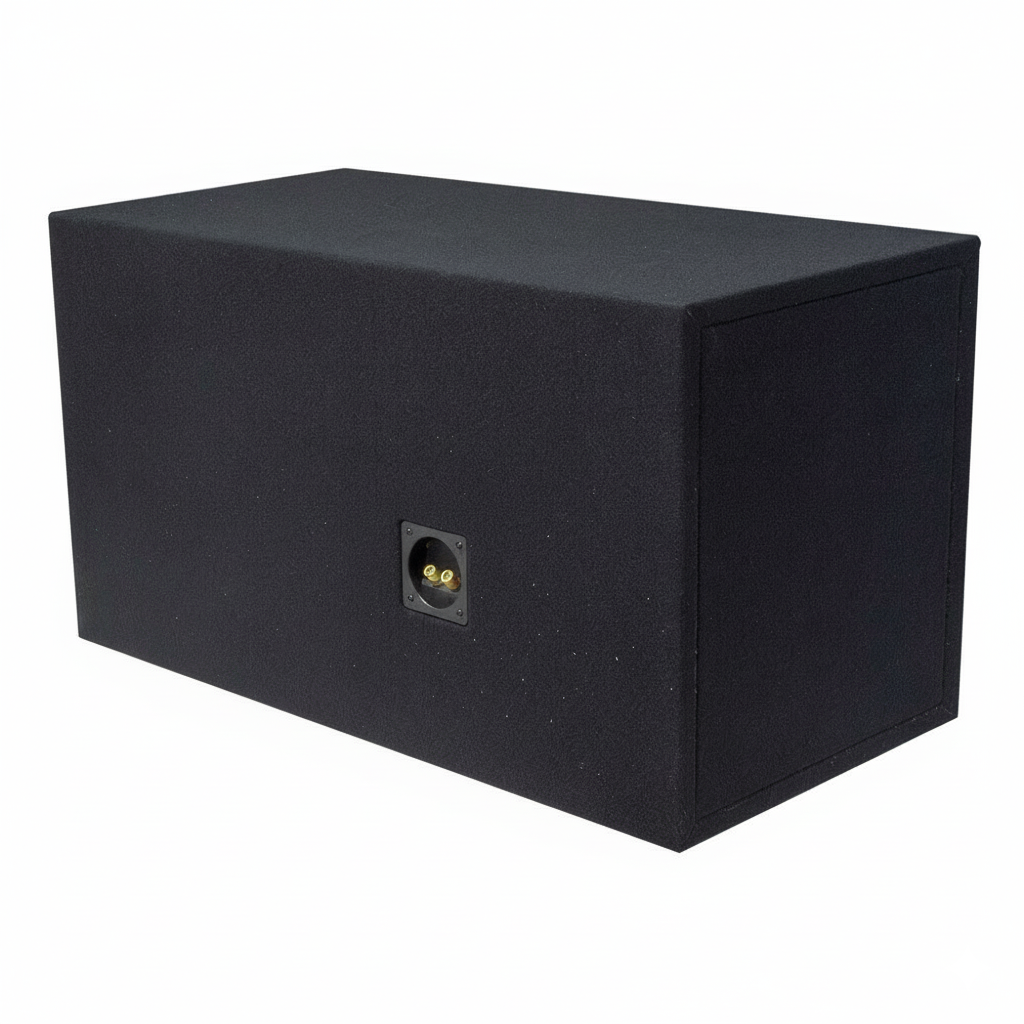

Terminal with cable installed to back side of box.
Note! Diameter of speaker hole: 294 mm.
Terminal with cable installed to back side of box.
Note! Diameter of speaker hole: 294 mm.
Ported enclosure for 12″ subwoofer
Net volume: 80 liters
Port area: 200 cm2
Port height: 40 cm
Port width: 5 cm
Port length: 40 cm
Tuning frequency: 38 Hz
Measurements ( W x H x D ): 800 x 405 x 440 mm
Diameter of speaker hole: 294 mm.
Net volume: 80 liters
Port area: 200 cm2
Port height: 40 cm
Port width: 5 cm
Port length: 40 cm
Tuning frequency: 38 Hz
Measurements ( W x H x D ): 800 x 405 x 440 mm
Diameter of speaker hole: 294 mm.
